Product Overview
Enhance your architectural design with the Black Konlite Cylinder LED Up and Down Wall Light, a sleek and modern outdoor lighting solution engineered for both form and function. Ideal for building facades, perimeter lighting, and commercial entrances, this versatile LED wall pack features a selectable wattage and CCT design, giving you control over brightness and color temperature to meet your project’s unique needs.
Wattage/Lumens (when the fixture is configured for up-light and down-light):
38W / 5,300LM (5000K), 5,600LM (4000K), 5,000LM (3000K) - (Default: 38W)
31W / 4,500LM (5000K), 4,650LM (4000K), 4,200LM (3000K)
19W / 2,900LM (5000K), 2,900LM (4000K), 2,700LM (3000K)
Wattage/Lumens (when the fixture is configured for either up-light or down-light):
19W / 2,580LM (5000K), 2,740LM (4000K), 2,400LM (3000K)
15.5W / 2,110LM (5000K), 2,150LM (4000K), 2,050LM (3000K)
9.5W / 1,400LM (5000K), 1,430LM (4000K), 1,300LM (3000K)
Key Features

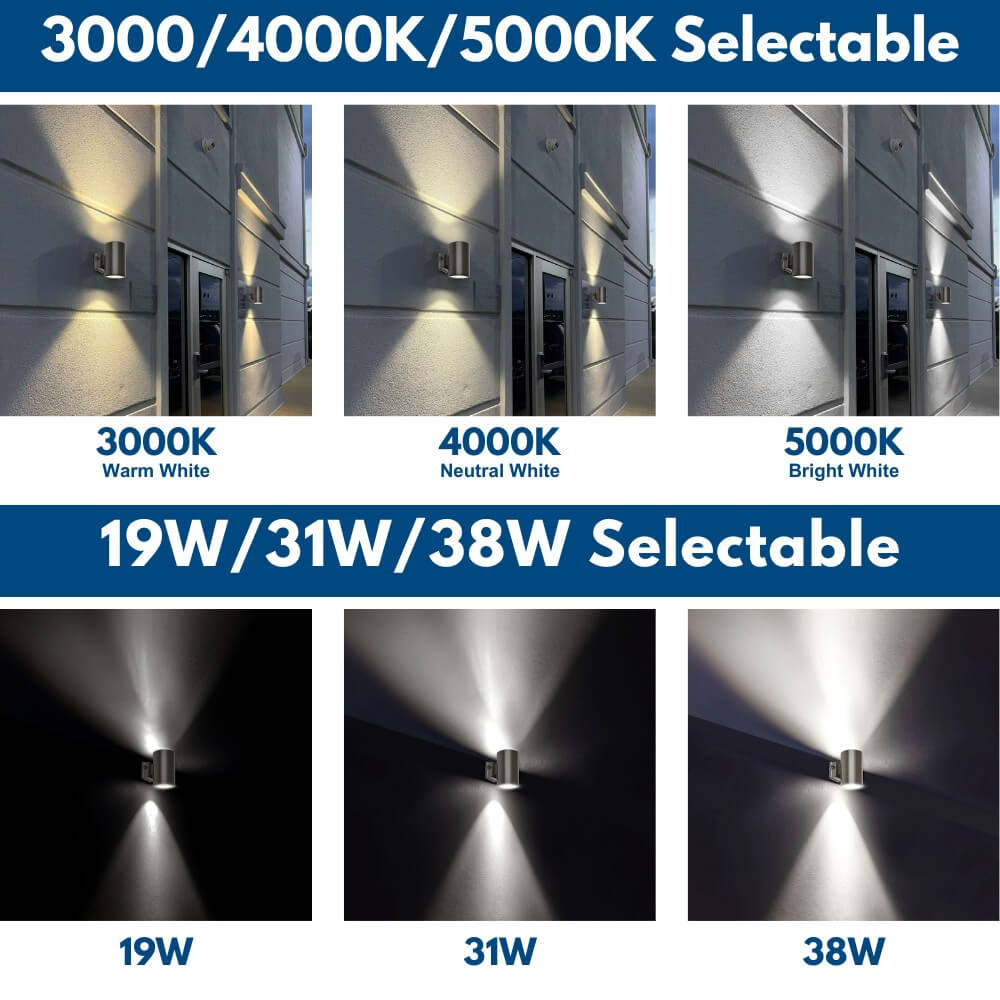

Wattage Selectable: Choose from 38W / 31W / 19W
CCT Selectable: 3000K / 4000K / 5000K (Default: 5000K)
Lumen Output: Up to 4,700 lumens (at 38W, 4000K)

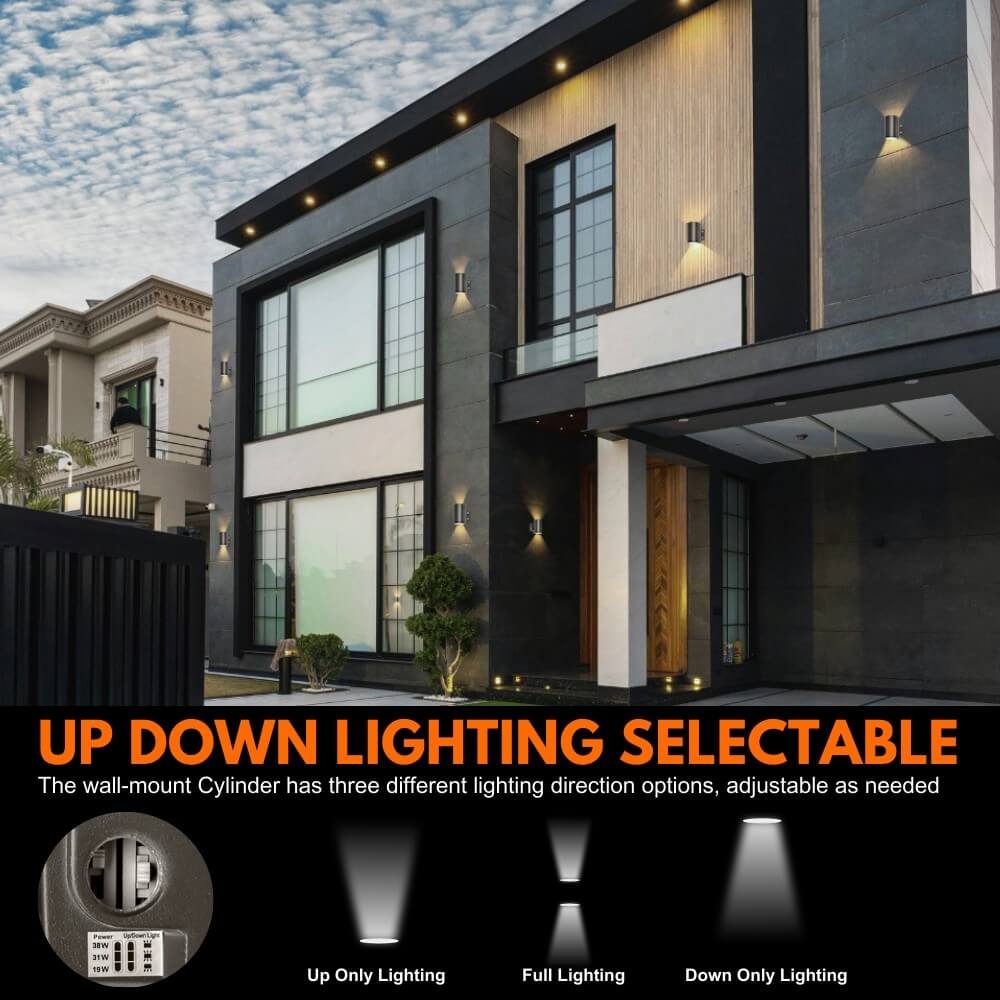

Adjustable Light Direction: Up lighting, down lighting, or both (default: up & down)
Beam Distribution Options: Switchable between narrow of 25° and wide beam of 75° spreads
Built-in Dusk to Dawn Photocell: Pre-installed with a daylight cap for energy-saving automation
Durable Construction: Die-cast aluminum housing with UV-stabilized polycarbonate lens, finished in dark bronze
Weather Resistant: IP65 rated for harsh outdoor conditions
Certifications: UL/cUL listed
5-Year Warranty
This energy-efficient LED up/down light fixture is ideal for both indoor and outdoor applications including restaurants, office buildings, parking garages, warehouses, and architectural facades. With its modern cylinder design and flexible settings, it delivers high-performance lighting while complementing your exterior aesthetics.
Applications
| • Security Lights | • Signage Lights |
| • Hospitality | • Building facades |
| • Storage Facilities | • Underpasses |
| • Parking Facilities | • Outdoor Corridors |
| • Warehouses | • Metal Buildings |
