Product Overview:
The 25W LED Emergency Backup Driver offers a robust emergency power solution for LED high bay fixtures, delivering up to 90 minutes of backup power during outages. Designed to operate with 100-347V AC input and providing 170V DC output. Suitable for fixtures up to 150W. Dimmable wire connection required for fixtures exceeding emergency power of 25 Watts ( For details, see the LED emergency driver wiring diagram ). This driver is ideal for maintaining critical lighting functionality in commercial and industrial settings.
This driver supports larger LED fixtures, ensuring 25W of emergency power, making it perfect for high bay lighting in environments such as warehouses, factories, and gyms. It is engineered for easy installation and is compatible with high-powered LED fixtures.
Key Features:
- Constant Power Output: Delivers consistent 25W of emergency power to supported fixtures.
- Wide input Voltage Range: Designed to work with input voltages from 100-347V AC and outputs 170V DC.

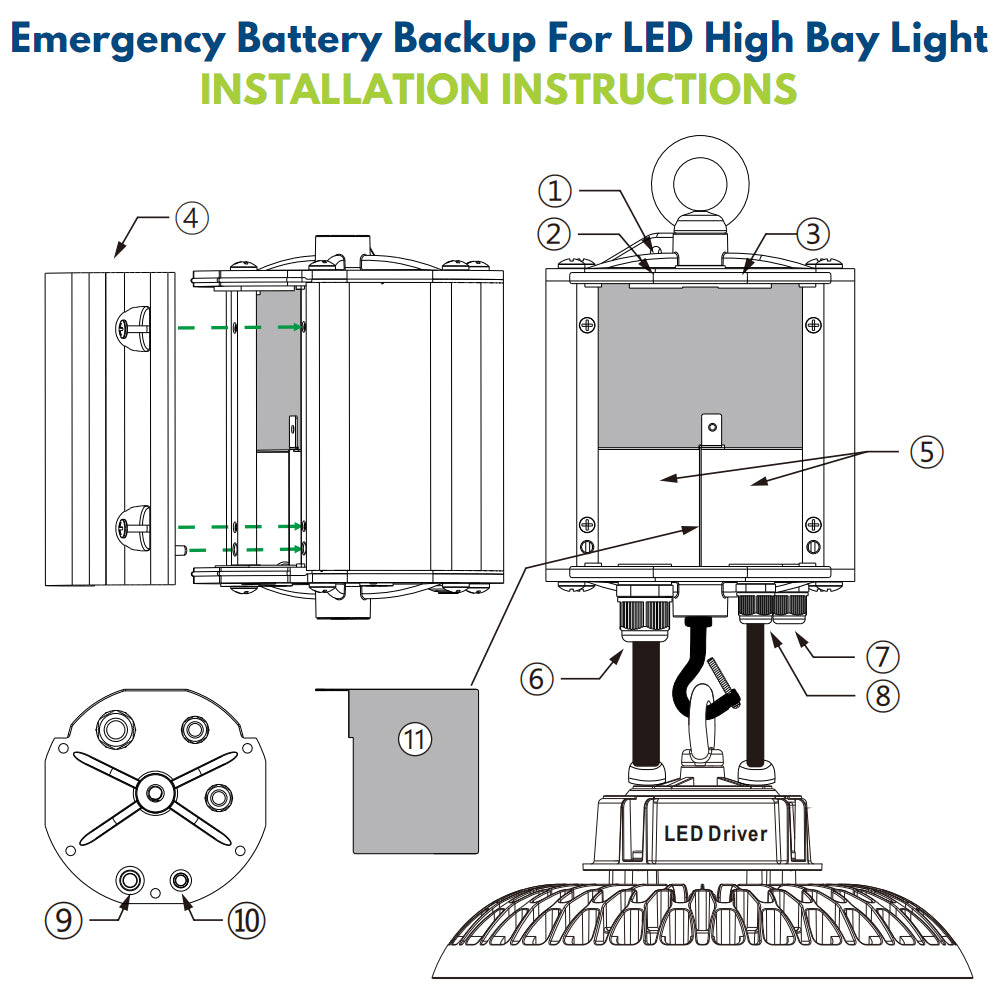

- Field Installable: Can be easily integrated into existing high bay lighting systems.
- Wide Application: Suitable for high bay lights, linear lights, and other large LED fixtures.
- Provides up to 1000 charge cycles for long-lasting reliability.
- Certifications: Compliant with UL 924, CSA C22.2, FCC, IP65, and CA Title 20, ensuring safety, energy saving, and performance.
- Backed by a 5-year warranty for peace of mind.
Luminaire Lumen Output Guideline During Emergency Operation:
To determine the lumen output during emergency operation, follow these steps:
- Fixture Efficacy: Check the luminaire's efficacy under normal AC operation, typically provided by the luminaire vendor.
- Lumen Calculation: Multiply the fixture’s lumens per watt (LM/W) by the rated emergency output power (25W for this driver).
Here are some suggested Konlite LED high bay lights from our collection and their performance during emergency operation:
- Efficacy: 151 LM/W
- Emergency Output: 25W x 151 LM/W = 3,775 lumens
- Efficacy: 159 LM/W
- Emergency Output: 25W x 159 LM/W = 3,975 lumens
This driver is ideal for ensuring uninterrupted lighting in critical environments, providing reliable emergency lighting for high bay fixtures. For more technical details, including the wiring diagram, refer to the Downloads section.
Applications
| •Warehouses | •Workshops |
| •Convention Centers | •Low Bays |
| •Storage Facilities | •Distribution Centers |
| •Factories | •Supermarkets |
| •Retail | •Gymnasiums |
